Walk the Plank BVI

Yacht Details

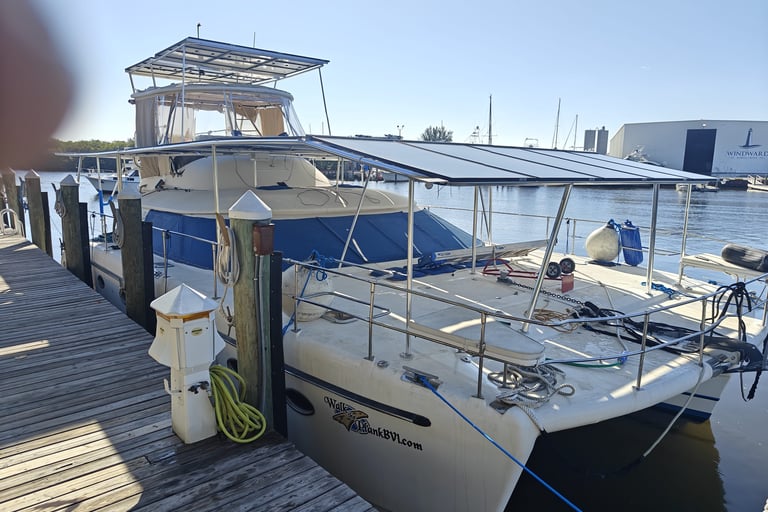

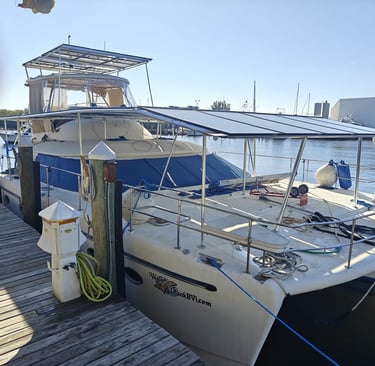

· 100% electric catamaran yacht

· 2005 Prowler Powercat

o Length: 48ft

o Width: 21ft

o Height: 22ft

o 3 air-conditioned cabins with double beds

o Each with private bathrooms/showers,

o Main cabin encompassing 1/2 of the lower level (2 cabins combined into one cabin by original owner)

o Separate bathroom areas for toilet (with bidet) and shower/sink

o 10KW diesel generator backup (with up to 500 gallons of fuel storage available)

o Two 150 Gallon Water tanks

o Jump-off swim “Walk the Plank” platform on upper deck

o Full kitchen with:

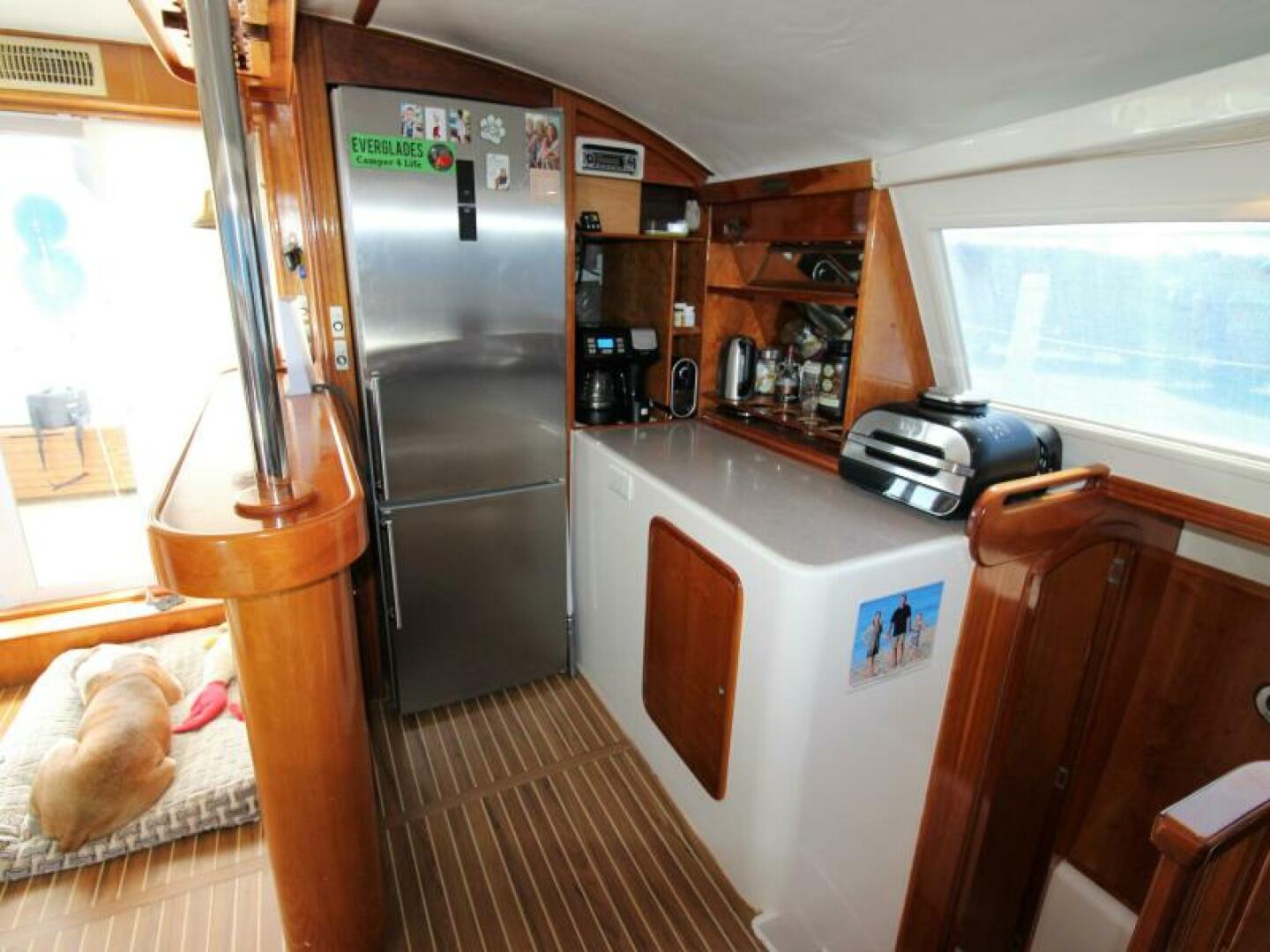

o 12V full size refrigerator

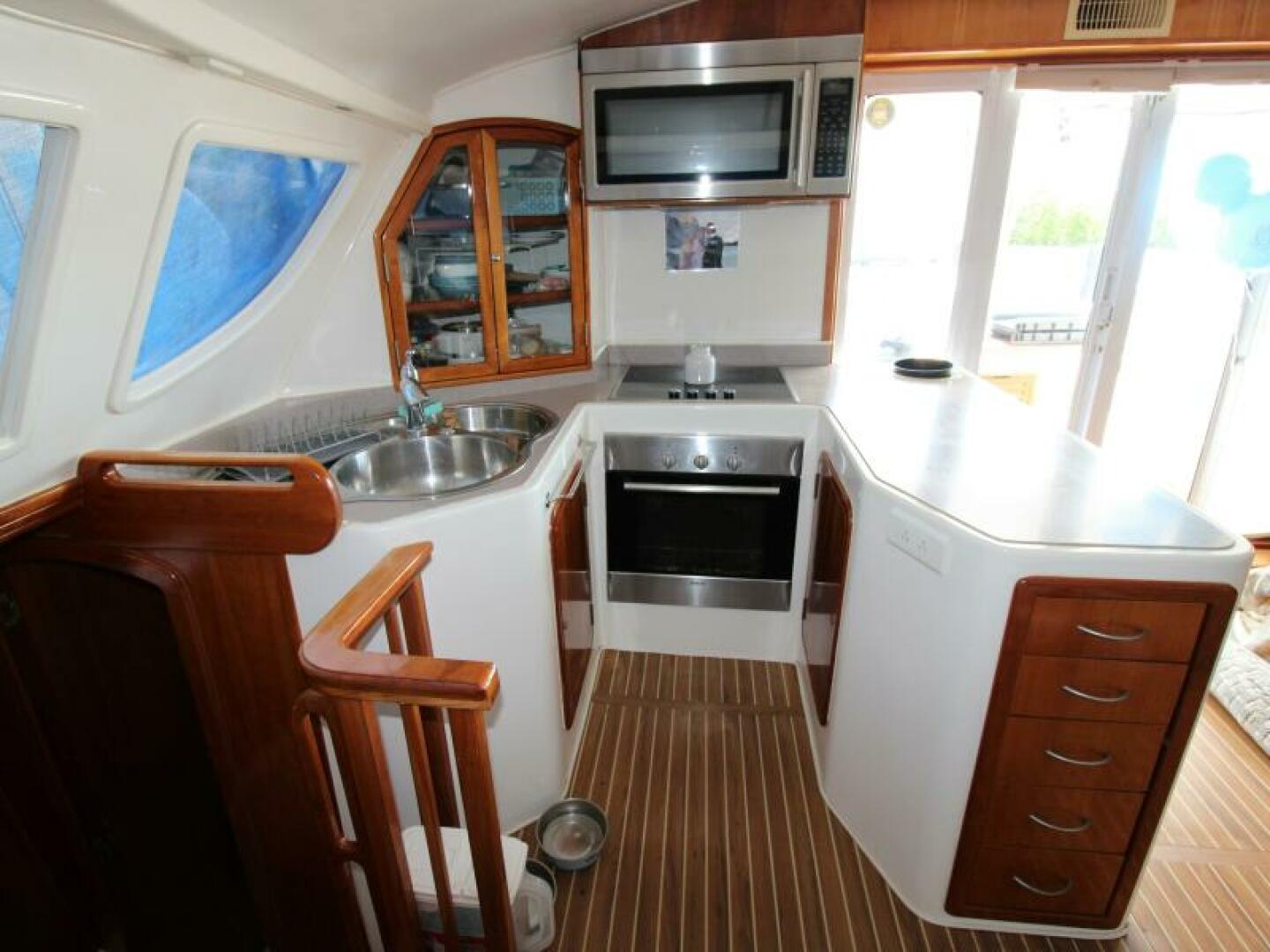

o Stovetop

o Oven

o Microwave

o Washer/Dryer

Technology

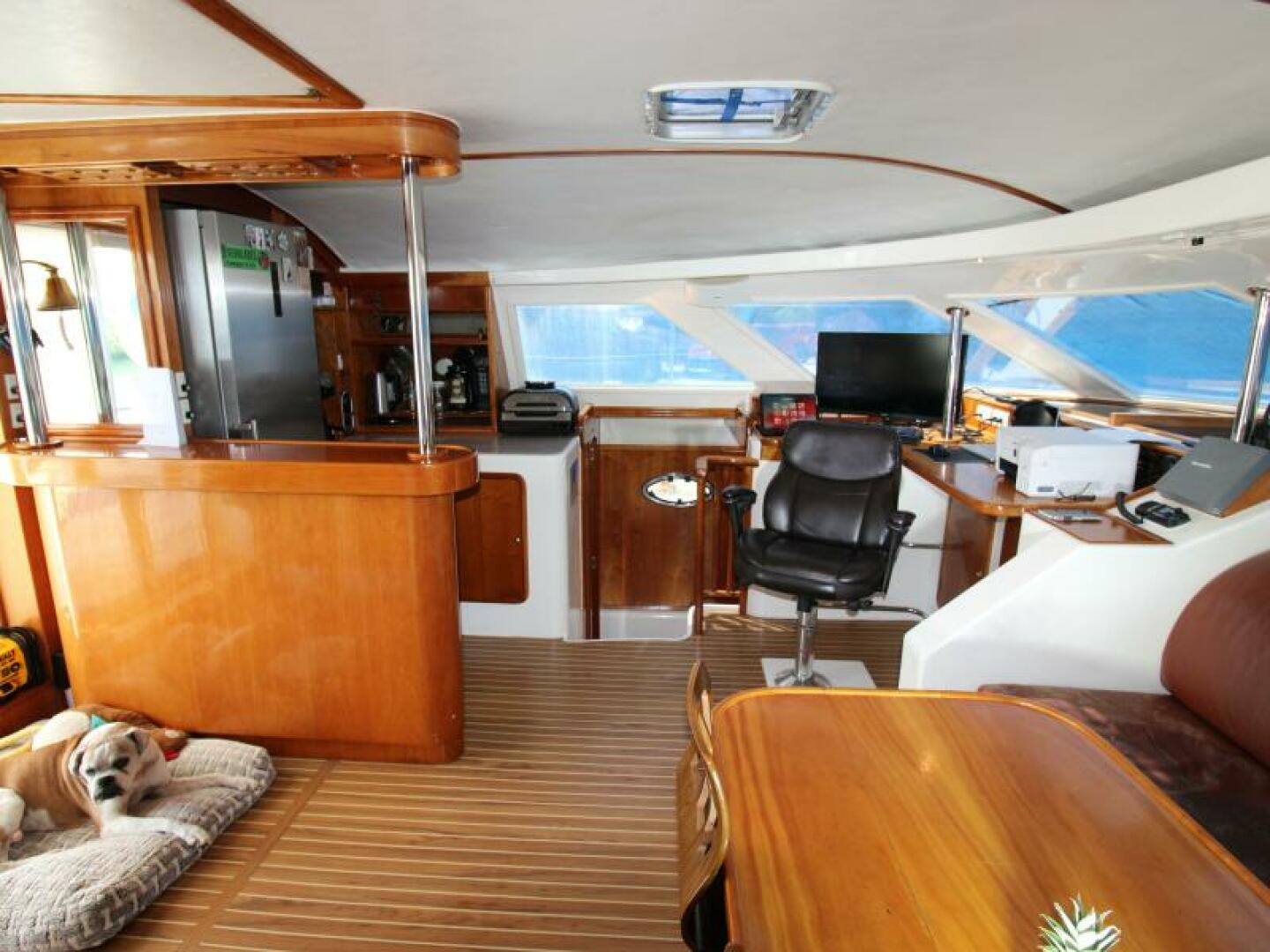

· Helm powered with:

o Raymarine Quattro 2 chartplotter

o Raymarine Quantum Dopplar II Radar

o Raymarine Auto-pilot

o Bridge Powered Anchor Switch

o 2 Redundant Marine Radios (helm and Salon)

o Engine/Battery Control systems that monitor

§ Energy consumption

§ Electric Generation

o Garmin Fusion Stereo

o 3-zone stereo system

o for upper deck, Inside and back deck zones

o Double speakers for every zone

o Remote control of bridge functions (control boat from anywhere on boat)

o GPS anchor – set boat to automatically reposition itself to remain stationary in one spot

o Starlink Satellite Internet

Solar Conversion

o 2 – 20kw 48V high-efficiency electric engines (approx. 40-50HP each)

o Cruising speed: 7-8 knots

o Battery storage 16 - 48V 6.8kw batteries totaling 109kw, with another 400ah 12V battery bank

o 12V – powering lights, refrigerator, navigation, anchor, stereo, water pumps

o 48V – powering propulsion engines, air conditioning, water maker

o 110V – powering hot water heaters, electric outlets, internet, washer/dryer, stove, oven

o 2400ah available at full charge

o REC Solar Bi-Facial Cell Panels 34 @ 425W each (Total: 14.45KWh) max generation

o Configured into 4 power zones culminating in 4 x 150V-100ah Victron solar chargers feeding identical 8-battery banks on both sides of boat.

o Custom 800sqft aluminum solar array frame

o 2 x 16,000 BTU 48V air conditioners

o 48V water maker capable of making 50 gallons per hour of fresh water

o 96V 100ah dinghy with center console

o Cross wiring of 2 x 200ah to connect starboard and port battery banks
